Product Description

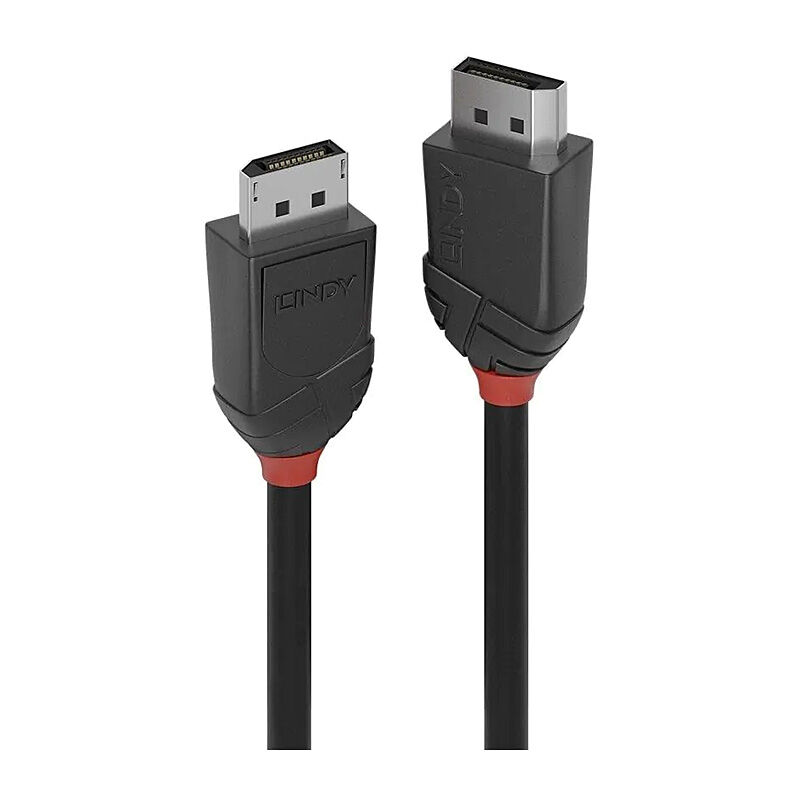

Lindy 1.5m DisplayPort 1.2 Cable, Black Line
Features
Entry level DisplayPort cable for home and small office applications
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, 24K gold plated contacts
Triple shielded cable, corrosion resistant copper 30AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty
Specifications
Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation: 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Minimum Bend Radius: 48mm (1.89in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Connectors
Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 19.7x12x38.9mm (0.78x0.47x1.53in)
Cable Construction
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Copper Braid 80%
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
