Product Description

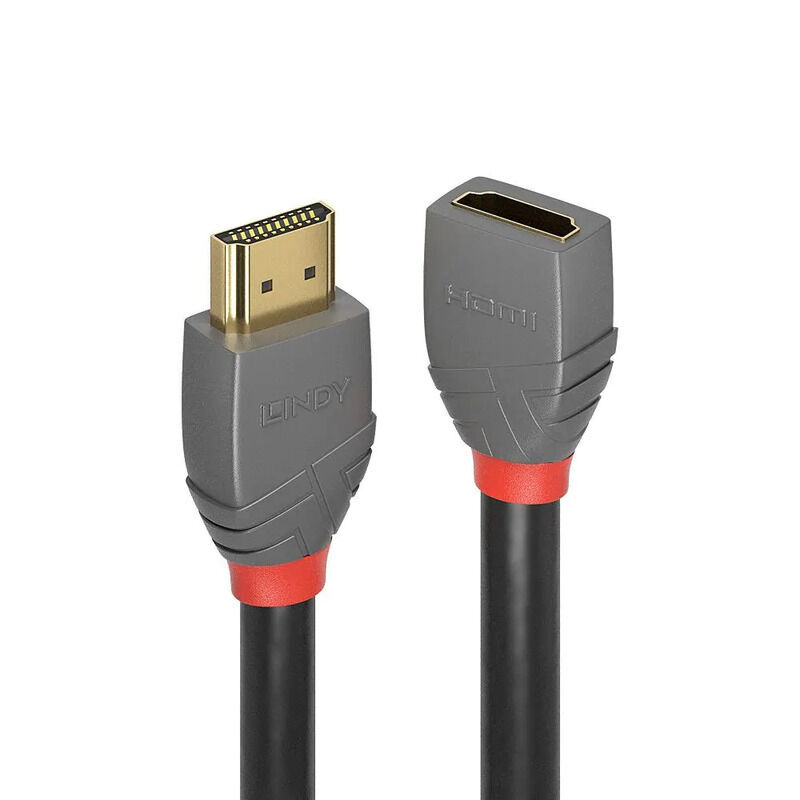

Lindy 2m High Speed HDMI Extension Cable, Anthra Line, HDMI Male to Female
Features
Superior performance and design High Speed HDMI 2.0 cable
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant bare copper 28AWG conductors
HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio
10 year warranty
Specifications
Connectors
Connector A: HDMI Type A Male
Connector B: HDMI Type A Female
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Copper Alloy
Pin Plating: Gold
Dimensions (approx.) WxDxH:
M: 19.5x35.0x11.0mm (0.75x1.38x0.43in)
F: 20.5x35.0x11.0mm (0.81x1.38x0.43in)
Cable Construction
Standard: HDMI 2.0
Colour: Black
Type: Round
Jacket Diameter: 7.0mm (0.28in)
Jacket Material: PVC
Conductor Material: Bare Copper Conductor
Gauge: 28AWG
Shielding: Aluminium Magnesium Alloy 85%
Specifications
Supported Bandwidth: 18Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
Nominal Attenuation:
1.35GHz > -5.5dB (HBR1)
2.7GHz > -8.5dB (HBR2)
4.05GHz > -11.0dB (HBR3)
Minimum Bend Radius: 70mm (2.76in)
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -20°C - 85°C (-4°F - 185°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, CP65, UL
