Product Description

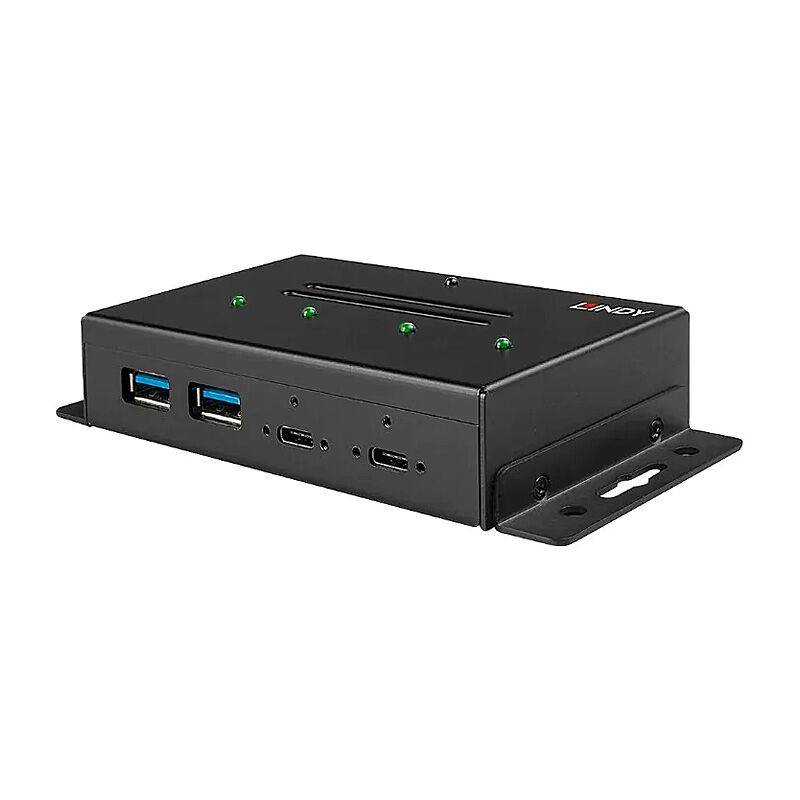

Lindy 4 Port USB 3.2 Gen 2 Industrial Hub, Metal Case
Features
USB Connectivity: Connects 2 Type‑A and 2 Type‑C USB 3.2 Gen 2 devices to a Type‑C port with SuperSpeed+ data rates up to 10Gbps
Industrial-Grade Design: Hard‑wearing USB hub ideal for industrial applications
Robust Housing: Metal enclosure with high EMC protection and integrated mounting brackets
Flexible Power Options: Powered by external power supply or terminal block
Warranty: 2 year
Specifications
USB Standard: USB 3.2 Gen 2
Supported Bandwidth: 10 Gbps
Chipset: VL820
Compatibility: USB Type‑C equipped computers, Thunderbolt 3
Power Delivery: -
Special Features: Supports Battery Charging 1.2; allows connection of USB Type‑C locking cables; Terminal Block
Connectors
Inputs: 1 x USB Type‑C (Female)
Outputs: 2 x USB Type‑A (Female), 2 x USB Type‑C (Female)
Power: 5.5/2.1mm DC socket
Physical Properties
Dimensions (WxDxH): 135 × 60 × 24mm (5.31 × 2.36 × 0.94in)
(Fixed) Cable Length: -
Housing Material: Metal
Net Weight: 0.229kg (0.5lb)
Operating Temperature: 0°C – 50°C (32°F – 122°F)
Storage Temperature: -25°C – 85°C (-13°F – 185°F)
Humidity: 0 – 95% RH (non‑condensing)
Power Requirements: 5VDC 4A
Colour: Black
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 230 × 198 × 63mm (9.06 × 7.8 × 2.48in)
Gross Weight: 0.667kg (1.47lb)
Warranty (Years): 2
Certifications: CE, FCC, RoHS & REACH
