Product Description

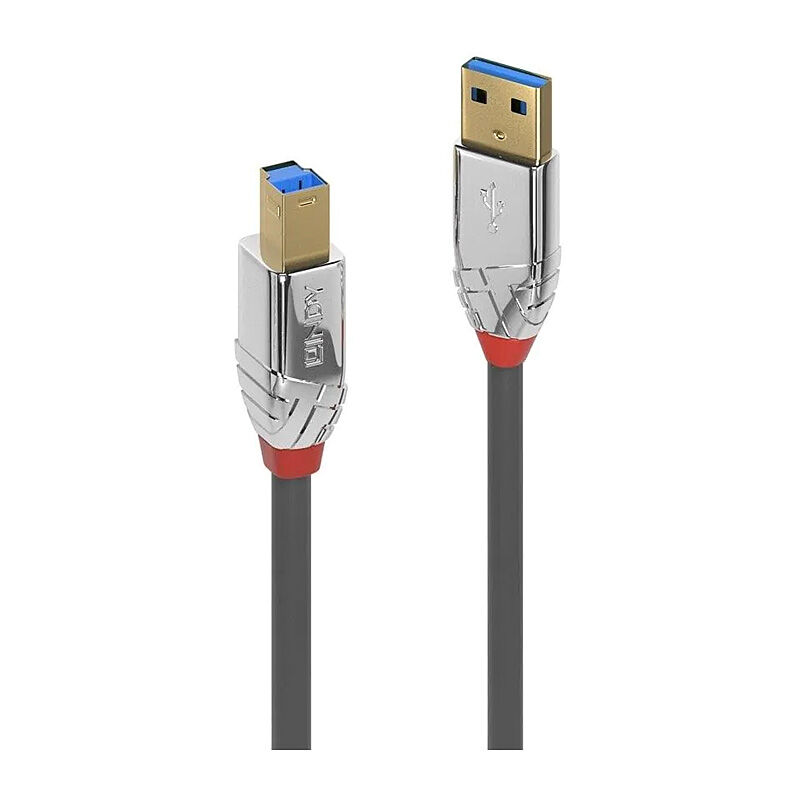

Lindy 5m USB 3.2 Type A to B Cable, 5Gbps, Cromo Line
Features
Superior performance and design USB 3.0 Type A to B cable
Supports SuperSpeed data transfer speeds up to 5Gbps
Chrome design ABS housing, 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant, high performance tinned copper conductors
SuperSpeed, USB 3.0, 5Gbps; 10 year warranty
Specifications
Supported Bandwidth: 5Gbps
Nominal Attenuation:
0.5-3m: 0.5MHz-7.5GHz
5m: 0.5MHz~7.5GHz
Minimum Bend Radius: 55mm (2.2in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
ATC Approved: -
Connectors
Connector A: USB 3.0 Type A Male
Connector B: USB 3.0 Type B Male
Housing Material: Chrome Plated, ABS
Connector Plating: Gold 1µm
Pin Construction: Phosphor Bronze
Pin Plating: Gold 3µm
Dimensions (approx.) WxDxH:
A: 15.5x35x7.8mm (0.61x1.38x0.31in)
B:12.2x35x13.5mm (0.48x1.38x0.53in)
Cable Construction
Standard: USB 3.0
Colour: Grey
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 24/28/28AWG
Shielding: Copper Braid 65%
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
