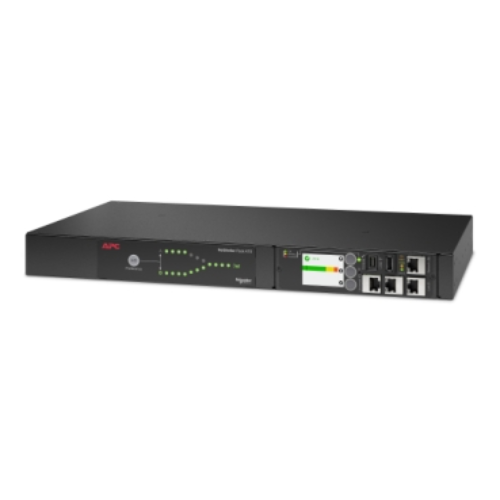

APC Netshelter Rack Automatic Transfer Switch, 1U, 12A, 208V , C14 IN, 12 C13 OUT, 50/60Hz

APC Netshelter Rack Automatic Transfer Switch, 1U, 12A, 208V , C14 IN, 12 C13 OUT, 50/60Hz APC NetShelter Rack Automatic Transfer Switch (ATS) AP4433A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4433A is single phase 1U Rack ATS with 12A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT. Main Input Voltage 230 V AC 1 phase Product or component type Automatic transfer switch Main Input Voltage 208 V AC 1 phase Product or component type Automatic transfer switch Main Output Voltage 208 V AC 1 phase Input Connection Type IEC 60320 C14 12 A 2P + E Number of rack unit 1U Cable length 2.43 m Number of cables 2 Provided equipment Mounting hardware Rack mounting brackets Physical Colour Black Height 44 mm Width 432 mm Depth 236 mm Net weight 3.74 kg Mounting location Front Rear Mounting preference No preference Mounting mode Rack-mounted Mounting position Horizontal Input Network frequency 50/60 Hz [In] rated current 12 A permissible voltage 187…228 V Max line current 12 A Input current limits 12 A Load capacity 3300 VA Output Max current draw 12 A Number of power socket outlets 12 IEC 60320 C13 12 A 2P + E Protection type Without circuit breaker Power cable length 2.44 m Conformance Standards EN 55022 class A FCC part 15 class A Environmental Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0…15240 m Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 11.4 cm Package 1 Width 60 cm Package 1 Length 35.6 cm Package 1 Weight 5.51 kg Contractual warranty Warranty (in months) 24
