Product Description

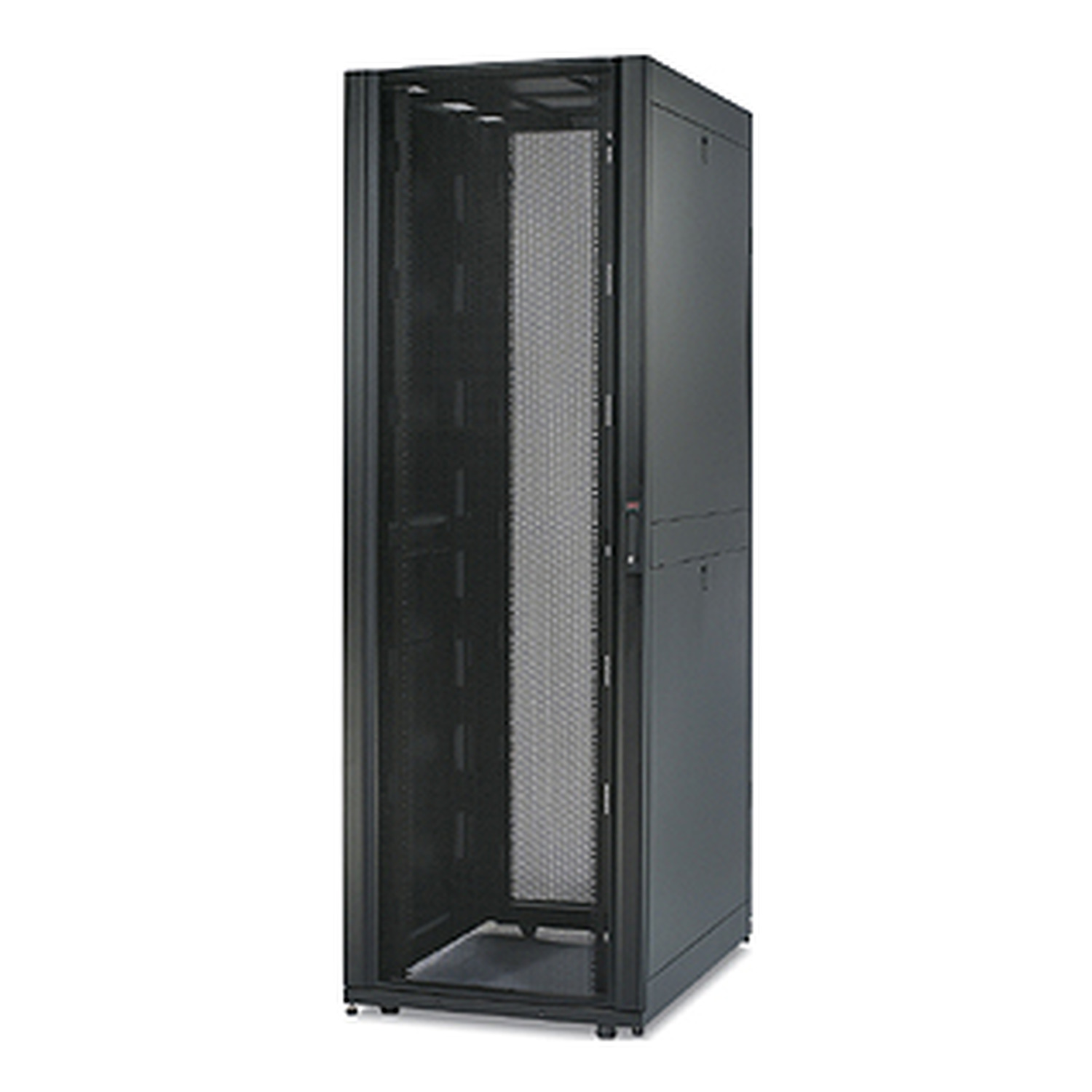

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm
An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components. The width is ideal for converged and hyperconverged IT which include a mix of server, storage, and network switches all in one rack.
Designed for high-density server and networking applications
Increased cable management options
42U height to easily roll through doorways
Plenty of clearance at the back for Rack PDUs and cable managers
Wide rack design provides space for passing cabling from front-to-back
Product or component type
Rack enclosure
Number of rack unit
42U
Rack width
19'
Permanent permissible load
1020.6 kg dynamic
1701.0 kg static
Provided equipment
Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels
Complementary
Mounting mode
Not rack-mountable
Minimum mounting depth
261.9 mm
Maximum mounting depth
914.9 mm
Colour
Black
Marking
14 gauge EIA mounting rail
16 gauge front door
16 gauge post
16 gauge rear door
18 gauge roof
18 gauge side panels
Height
1991 mm
Width
750 mm
Depth
1070 mm
Net weight
155.96 kg
