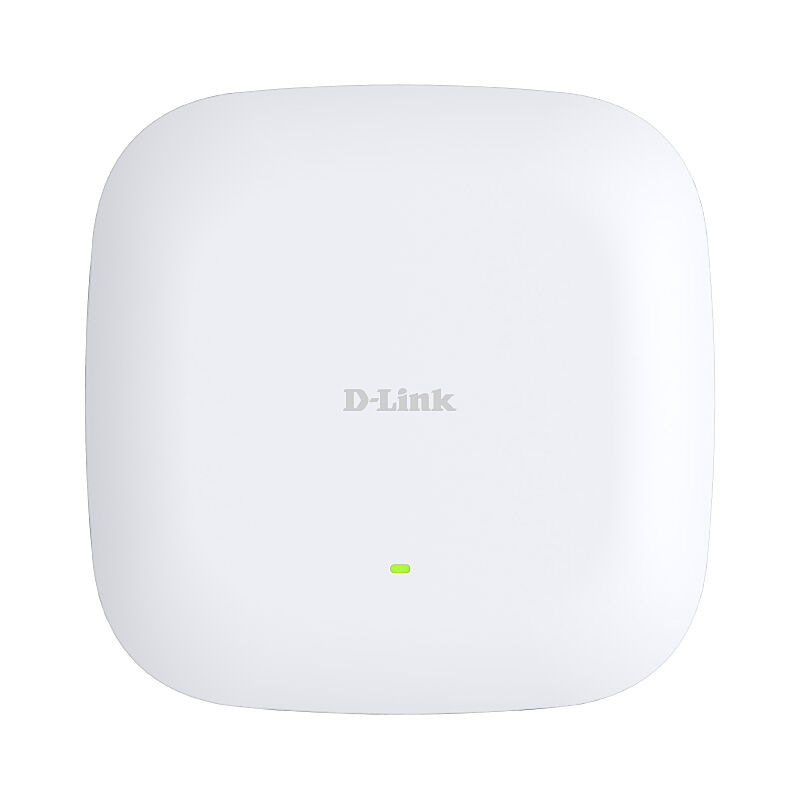

D-Link Wi-Fi 7 Access Point

D-Link DAP-E9560 Wi-Fi 7 ceiling-mount access point for business wireless networks, with tri-band BE9500 performance, PoE support, secure WPA3 connectivity and Nuclias management for easier setup and control. Features Wi-Fi 7 BE9500 Tri-band high-speed connectivity 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN Powered by 802.3bt PoE, USB-C adapter Max. channel bandwidth support (320MHz) 4096-QAM – Up to 20% faster than Wi-Fi 6 Flexible use of multiple operating modes WPA3 encryption for enhanced Wi-Fi security Customizable Captive Portal for user access Multi-Link Operation boosts connection stability Centrally managed via Nuclias Network Controller Specifications Category: Ceiling Interfaces: 1 x 10-Gigabit Ethernet PoE LAN port 1 x 2.5-Gigabit Ethernet LAN port Antenna type: 2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas 2 x 6 GHz internal antennas Antenna gain: 2.4 GHz: 3.3 dBi 5 GHz: 4.8 dBi 6 GHz: 4.6 dBi Maximum Output Power: 2.4 GHz: 23 dBm 5 GHz: 25 dBm 6 GHz: 24 dBm Data Signal Rate: 2.4 GHz: Up to 688 Mbps 5 GHz: Up to 2882 Mbps 6 GHz: Up to 5764 Mbps IEEE Standard: IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/an/bz IEEE 802.3bt PoE Operating Frequency: 2.4 - 2.483 GHz 5.15 - 5.35 GHz 5.47 - 5.85 GHz 5.925 - 7.125 GHz Security Protocol: WPA/WPA2/WPA3™ Personal/Enterprise WEP 64/128-bit SSID broadcast disable Enhanced Open MAC address access control Internal RADIUS server Network Management: Web Nuclias Unity Nuclias hardware and software controller SNMP Power Supply: IEEE 802.3bt PoE USB Type-C Max. Power Consumption: 27.756 W Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C to 65°C (-4°F to 149°F) Operating Humidity: 10% to 90% Storage Humidity: 5% - 95% Dimensions: 223 x 223 x 46.7 mm
