Product Description

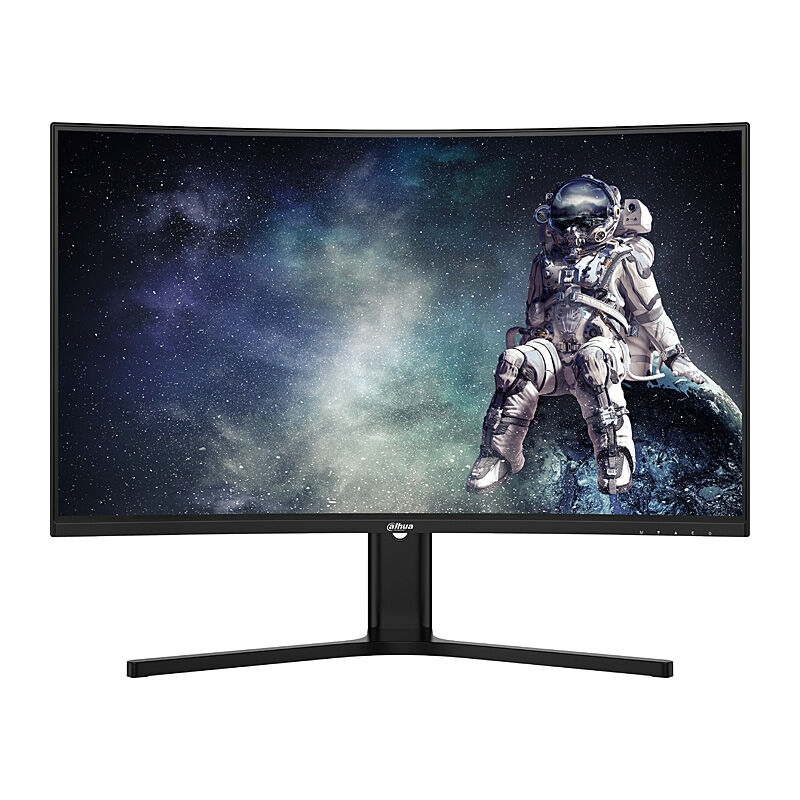

DAHUA 32'' VA Monitor, 2560*1440, 180Hz, MPRT 1ms, 2*DP+2*HDMI+Audio out
Features
R1500 curved screen delivers a more immersive and impactful visual experience
180 Hz high refresh rate and 1 ms fast response time help capture every gaming moment and improve winning potential
Adaptive Sync technology reduces image tearing and lag for smoother visuals
Wide color gamut with 85% NTSC coverage, providing rich image texture suitable for designers
1 ms fast response time eliminates blurring and ghosting
Adjustable angle design to meet different viewing needs
Specifications
Model: DHI-LM32-E330CA
LCD Technology: VA
Backlight: ELED
Curved Screen: Yes
Curvature: 1,500 R
Screen Size: 31.5 inch
Aspect Ratio: 16:9
Viewing Size: 697.344 (H) × 392.256 (V) mm
Screen-to-Body Ratio: ≥85%
Viewing Angle: 178° (H) / 178° (V)
Display Mode: Horizontal
Pixel Pitch: 0.2724 mm × 0.2724 mm
Pixels Per Inch: 93.2
Resolution: 2560 (H) × 1440 (V)
Refresh Rate: 180 Hz
Display Color: 8 bit
Color Gamut: 85% NTSC
Brightness: 300 cd/m² (typ.)
Contrast Ratio: 3000:1
Response Time: MPRT 1 ms
Lifespan: 30,000 hrs
Surface Treatment: Haze 40%, 3H
Flicker-free Technology: Yes
Low Blue Light: Software blue light protection
HDR: HDR10
Device Ports
Input: 2 × HDMI 2.0 (2560 × 1440@144 Hz), 2 × DP 1.4 (2560 × 1440@180 Hz)
Output: 1 × Audio out
Power & Environmental Conditions
Power Supply: 19 VDC, 3.42 A
Power Type: Power adapter
Power Consumption: 32 W (basic), 46.5 W (typ.), 72 W (max)
Standby Power Consumption: <0.5 W
Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity: 10%–85% RH
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity: 5%–90% RH
General
Inclined Angle: –5° / 15°
Left and Right Rotation Angle: -35° / +35°
Height Adjustment: 100 mm
Product Dimensions (W × H × D): 717.7 mm × 422.4 mm × 118.3 mm (28.26" × 16.63" × 4.66"), without base
Package Size (W × H × D): 954 mm × 523 mm × 183 mm (37.56" × 20.59" × 7.2")
Unilateral Splicing (U/L/R/D): 3.8 mm / 3.8 mm / 3.8 mm / 17.2 mm
Net Weight: 7.0 kg (15.43 lb)
Gross Weight: 9.1 kg (20.06 lb)
Casing Color: Black
Control Mode: Five‑button
RGB Light Effect: Back Cover – Seven colors
Status Indicator Light: Yes
Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")
Accessory
Power adapter
Wall‑mount bracket
DP cable
User's manual
Legal and regulatory information
Optional Accessory
Wall mount
Certification
CE EMC
CE LVD
CE ERP
