Product Description

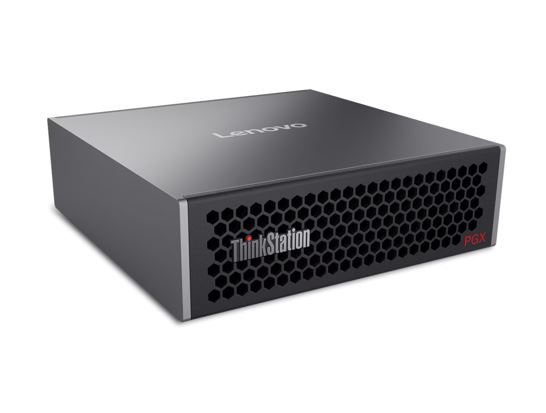

LENOVO ThinkStation PGX nVidia GB10 Grace Blackwell 128GB LDDR5X 2TB SSD nVidia DGX OS Blackwell GPU 10GbE LAN WIFI7 4xUSB-C 2xQSFP 240W 1yr PRE OS
PERFORMANCE
Processor Built into NVIDIA® GB10 Grace Blackwell Superchip, 20 core Arm, 10x Cortex-X925 + 10x Cortex-A725
Integrated Graphics NVIDIA® Blackwell Architecture, Built into NVIDIA® GB10 Grace Blackwell Superchip
Chipset NVIDIA® GB10 Grace Blackwell Superchip
Memory 128GB LPDDR5X, 256-bit, Unified System Memory
PCIe NVMe Drive 2TB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0
Audio Chip HDMI® multichannel audio output
Power Supply 240W Adapter
DESIGN
Dimensions (WxDxH) 150 x 150 x 50.5 mm (5.91 × 5.91 × 1.99 inches)
Weight 1.2 kg (2.65 lbs)
CONNECTIVITY
Onboard Ethernet ConnectX-7 Smart NIC, 1x 10GbE RJ-45
WLAN + Bluetooth Wi-Fi® 7, 802.11be + BT5.3
Rear Ports 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.1 in and DisplayPort™ 2.1
3x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with DisplayPort™ 2.1
1x HDMI®
1x Ethernet (10GbE RJ-45)
2x QSFP (200Gbps each, for connecting two ThinkStation® PGX units)
SERVICE
Base Warranty 1-year, Onsite
Included Upgrade 1Y Premier Support Upgrade from 1Y Onsite
SOFTWARE
Operating System NVIDIA® DGX OS
