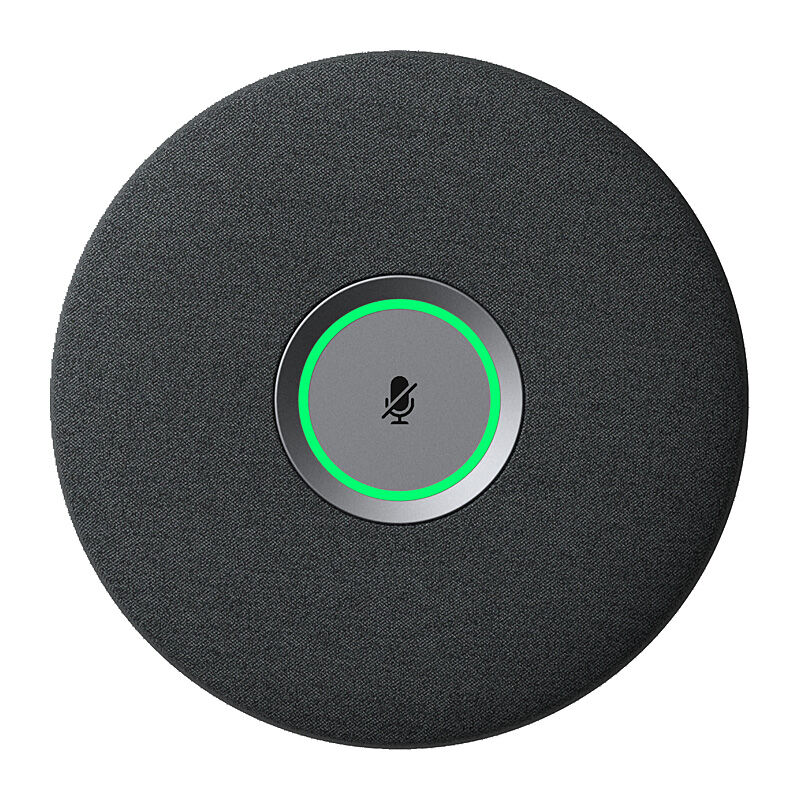

MAXHUB Mic Pod DM30

MAXHUB Mic Pod DM30 is a professional-grade expansion microphone engineered to optimize audio in Microsoft Teams Rooms. Features 360° omnidirectional pickup with support for multi-device cascadeexpansion. One-Touch Mute Toggle – A gentle touch instantly toggles the microphone on or off. Standard IP-Based Protocol – Enables independent, visual control andmanagement of each device via dedicated management software. Plug-and-play compatibility with the MAXHUB XBar series. Integrated AI audio algorithms, including AGC, AEC, and ambient noisereduction. Non-slip design with an optional desktop mounting bracket for enhancedstability and positioning. Specifications Microphone Quantity: 8 Pickup Distance: 3 m (Optimal) Type: Silicon Microphone Frequency Range: 100 Hz - 20 kHz Microphone Unit Sensitivity: -37dBFS Maximum Number of Devices in a Cascade: 4 units Accessories 7.5 m (24.6 ft) Network Cable: ×1 Cable Grommet: ×1 Screw Kit: ×1 Mounting Bracket: ×1 Environmental Conditions Operation Temperature: 0°C - 40°C Operation Humidity: 10% - 90%RH Storage Temperature: -20°C - 60°C Storage Humidity: 10% - 90%RH Altitude: Below 5000 meters I/O Ports Port: Dual RJ45 Ports Input (RJ45): 52V / 0.24A Output (RJ45): 52V / 0.18A Touch Button: Mute/Unmute the microphone Indicator Light: Green Light: In meeting - microphone active Red Light: In meeting - microphone muted White Light: Standby mode Physical Specifications Dimension (D×H): φ112.5 × 30.3 mm Dimension (Package) (L×W×H): 1pcs: 208 × 187 × 114 mm 10pcs: 595 × 395 × 250 mm Net Weight: 0.265 kg Gross Weight: 1pcs: 0.9 kg 10pcs: 10.5 kg
