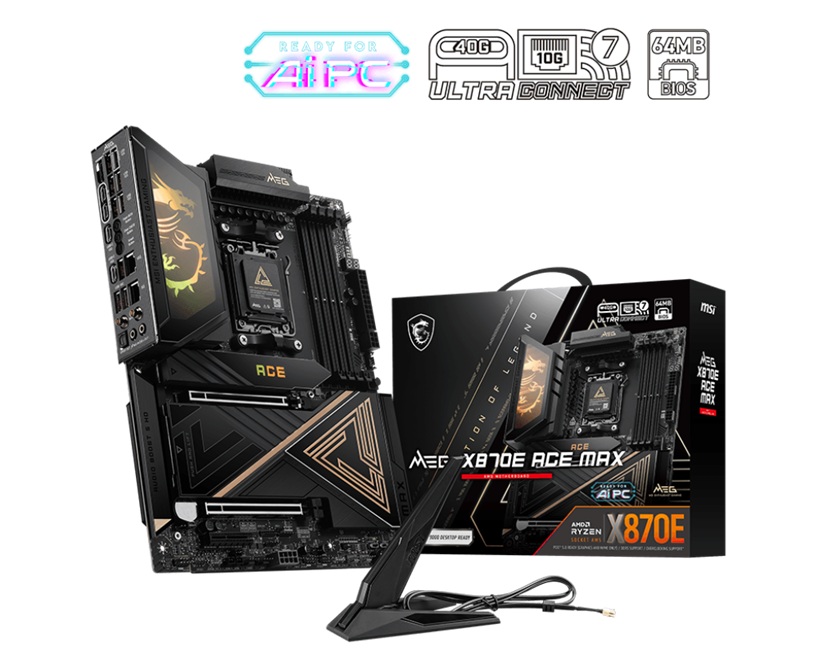

MSI X870E ACE MAX, AM5 X870E flagship, Ryzen 7000–9000, DDR5-8400+ OC, PCIe 5.0, dual M.2 Gen5, USB4, Wi-Fi 7, 10G+5G LAN, Audio Boost 5
SKU: X870E ACE MAX
Motherboards AMD Socket AM5 (Zen 4)
$1175.00
AUD inc. GST
Out of Stock — available to order
| Brand | MSI |
| Warranty | 36 |
| Weight | 0.00 kg |
Product Description
MSI X870E ACE MAX, AM5 X870E flagship, Ryzen 7000–9000, DDR5-8400+ OC, PCIe 5.0, dual M.2 Gen5, USB4, Wi-Fi 7, 10G+5G LAN, Audio Boost 5
SPECIFICATIONS
Model Name MEG X870E ACE MAX
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Expansion slots
1x PCIe 5.0 x16 slot,
1x PCIe 5.0 x8 slot,
1x PCIe 5.0 x4 slot
Display Interface
2 x USB4 ports support USB Type-C display output,
Support 8K@60Hz as specified in HDMI™ 2.1 FRL,
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
Storage
2 x M.2 Gen5 x4 128Gbps slots,
3 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
USB ports
2 x USB 40Gbps (2 Type-C),
1 x USB 20Gbps (1 Type-C),
11 x USB 10Gbps (9 Type-A + 2 Type-C),
4 x USB 5Gbps (4 Type-A),
4 x USB 2.0
LAN
1 x Marvell® AQC 10Gbps LAN, 1 x Realtek® 5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 HD
