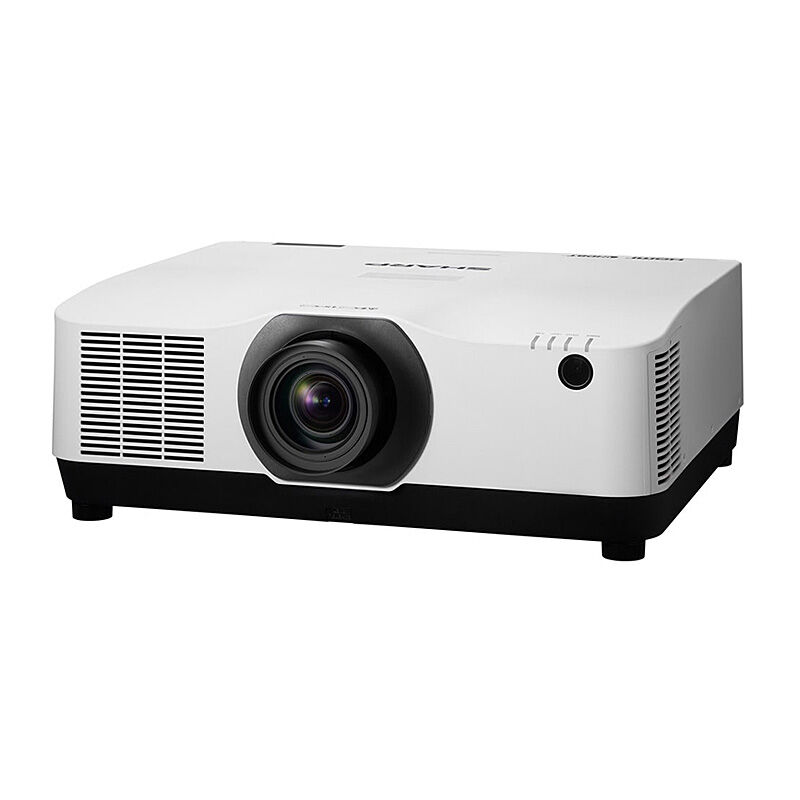

SHARP Advanced A824U-W | Eyre Computer

Product Description

SHARP Combining Laser and LCD for brilliant colour and contrast wth cost concious installation & TCO.

No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.

Projection Technology: 3LCD Technology
Native Resolution: 1920x1200
Aspect Ratio: 16:10
Contrast Ratio (typ.): 3,000,000:1
Brightness (Lumen): 7500 Lumen (approx. 80% in Eco Mode), with std. optional lense; compliant with ISO21118-2012
Brightness (Boost Mode): 8200 Lumen
Light Source: Laser
Light Source Life: 20,000 hrs
Lens: 5 motorized lens options
Lens Adjustment: Motorized
Lens Adjustment: Motorized and manual (depending on lens)
Lens shift: H:±20, V:+10,-50
Keystone correction: +/- 40° manual horizontal / +/- 40° manual vertical
Projection Factor: depending on lens selection (std. option XP-41ZL at 1.3-3.02:1)
Projection Distance (m): 0.7 – 50.9m
Screen Size (diagonal): Max. 1,270cm, Min. 101.6cm
Zoom: Motorized and manual (depending on lens)
Frequency: Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz

Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Digital Output: 1 x HDBaseT supporting HDCP 2.2
Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Audio Output: 1 x 3.5 mm Stereo Mini Jack
Input Control: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN: 1 x RJ45
USB: 1 x Type A (USB 2.0 high speed)
3D Sync Output: 1 x Mini DIN 3pin
Remote Control: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control

Power Supply: 100-240 V AC; 50 - 60 Hz
Power Consumption: 615 (Normal) / 560 (Eco) / 0.8 (Network Stand-by) / 0.28 (Stand-by)

Optional Accessories: 5 optional bayonet lenses; Cable Cover (XP-13CV-W, XP-13CV-B)
Lenses (Motorized): XP-40ZL/NP40ZL (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-A/NP44ML-PA4 (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1)

Safety and Ergonomics: CE, EAC, ErP, RoHS, TUEV Type Approved
Special Characteristics: 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; IP5X/IP6X rated; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control

Brand	Sharp
Weight	0.03 kg
