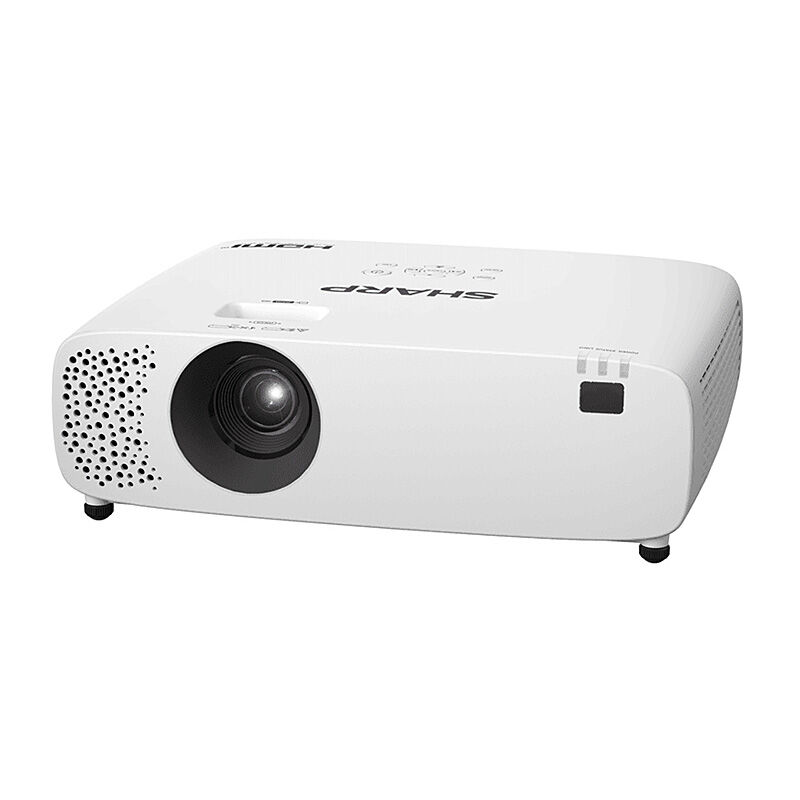

SHARP Professional E501U-W

SHARP Solid State Light Source (no lamp), Quick Start & Power-off. Dual HDMI inputs.

Features

• Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
• Enjoy a Lower TCO – highest reliability, maintenance free operation, low power consumption and up to 20000 hours life; the Laser light source results in a significantly lower total cost of ownership.
• Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
• Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

Specifications

General Information

• Projection Technology: 3LCD Technology
• Native Resolution: 1920x1200
• Aspect Ratio: 16:10
• Contrast Ratio (typ.): 5,000,000:1
• Brightness (Lumen): 5000 Lm Normal / 5300 Lm Center / 4000 Lm Silent Mode; compliant with ISO21118-2020
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Lens: F= 1.6–1.76, f= 19.16–23.02 mm
• Keystone correction: +/- 30° manual horizontal / +/- 30° manual vertical
• Projection Factor: 1.37–1.65:1
• Projection Distance (m): 0.85 – 11m
• Screen Size (diagonal): Maximum: 762 / 300"; Minimum: 76 / 30"
• Zoom: Manual; x1.2
• Focus Adjustment: Manual

Connectivity

• Digital Input: 2 x HDMI™ supporting HDCP
• Audio Output: 1 x 3.5 mm Stereo Mini Jack
• Input Control: 1 x D-Sub 9 pin (RS-232) (male)
• LAN: 1 x RJ45
• USB: 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 1.5A Power Supply
• Remote Control: Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left

Electrical

• Power Supply: 100-240 V AC; 50 - 60 Hz
• Power Consumption: 310 Normal / 250 Silent Mode / 1 Network Stand-by / 0.4 Stand-by

Environmental

• Operating Temperature: 5ºC to 45ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -10ºC to 50ºC
• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: 390 x 128 x 294 (without lens and feet)
• Weight [kg]: 5
• Fan Noise [dB (A)]: 39 / 29 (Normal / Silent)
• Colour Versions: White

Other Features

• Safety and Ergonomics: CE; ErP; RoHS; RCM; TUEV Type Approved
• Built-In Speaker: 1 x 16 (mono)
• Special Characteristics: Carbon Savings Meter; Control ID Function; Crestron RoomView; Free Tilt; Geometric Correction; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer

Ecological Standards

• ErP compliant; RoHs compliant

Ecological Materials

• Downloadable manuals; ECO packaging

Shipping Content

• 2x AAA Batteries; IR Remote Control; Power Cord; Projector; Quick Setup Guide; Security Sticker; Users Manual
