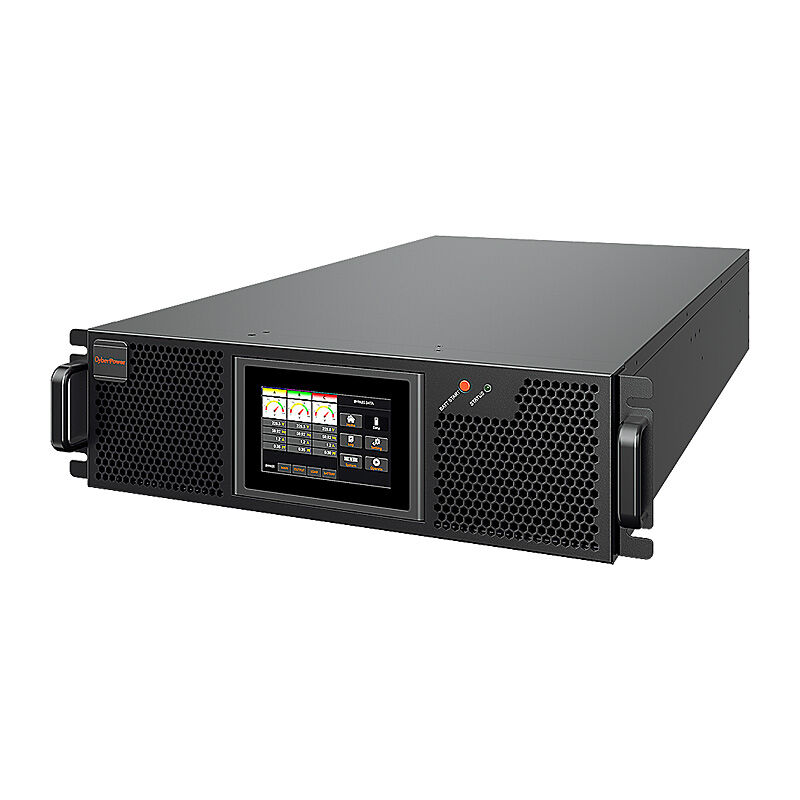

Cyberpower 10kw 3Phase UPS

CyberPower Systems RT33 3-3Phase Rack/Tower 10kVA/10kW UPS (no batteries)

Features

• Three-phase Design
• ECO Mode
• Flexible System Configuration
• Rack Modular Design
• Color LCD Panel
• Dual Inputs
• Generator Compatible
• Battery Cold Start
• SNMP/HTTP Remote Management Capability (Optional)
• Extended Battery Module (EBM)
• Online (Double Conversion) UPS Topology
• High Density Design
• High Output Power Factor
• Rack/Tower Convertible Configurations
• LCD Touch Panel
• UPS Parallel Expansion
• Pure Sine Wave Output
• Smart Battery Management (SBM)
• PowerPanel Management Software

Specifications

General

• Phase: Three Phase
• Form Factor: Rackmount, Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: ECO Mode Efficiency ? 98%
• Normal Mode Efficiency ( % ): 95%
• Battery Mode Efficiency ( % ): 94.5%
• Active PFC Compatibility: Yes
• Parallel Expansion (Max. Units): 4

Input

• Dual Power Inputs: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
• Input Voltage Range ( Vac ): Line to Neutral (L-N): 132 ~ 276 Vac; Line to Line (L-L): 228 ~ 478 Vac
• Configurable Voltage Range ( Vac ): Line to Neutral (L-N): 220 ~ 250 Vac; Line to Line (L-L): 380 ~ 435 Vac
• Input Frequency ( Hz ): 50 ± 3 / 60 ± 3
• Input Frequency Range ( Hz ): 40 ~ 70
• Rated Input Current ( A ): 20
• Current Harmonic ( % ): 4%
• Input Power Factor: 0.99
• Input Connector Type: Hardwire Terminal Block

Output

• Capacity (VA): 10000
• Capacity (Watts): 10000
• On Battery Waveform: Pure Sine Wave
• Output Voltage Setting: Configurable
• Output Frequency Setting: Configurable
• Rated Output Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
• Output Voltage Tolerance ( % ): 1.5 %
• Output Frequency ( Hz ± % ): 50 ± 0.1 / 60 ± 0.1
• Power Factor: 1
• ECO Mode Voltage Tolerance: ± 10 %
• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
• Overload Protection (Line Mode): 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, ?150% Load Immediately
• Overload Protection (Battery Mode): 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, ?150% Load Immediately
• Overload Protection (Bypass Mode): 125~130% Load for 10 min, 130~150% Load for 1 min, 150~400% Load for 1 sec, ?400% Load Immediately
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD?1%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet Type: Hardwire Terminal Block x 1
• Typical Transfer Time ( ms ): 0

Battery

• Compatible Battery Types: VRLA, AGM, Gel, Wet
• Recharge Power ( % ): Default 10% (Selectable from 1~20% x UPS Capacity)
• Recharge Power Setting: Configurable
• Charger Voltage Tolerance ( % ): ≤ 1 %
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: No
• Battery Solution: Extended Battery
• Battery Voltage ( V ): ±240 (480)
• Compatible Extended Battery Module (EBM): BM240V63ART3U
• Compatible Extended Battery Cabinet (EBC): SMBF17, SMBF20, SMBF26, SMBF33, SMBF40, SMBF65, BCA100N125, BCA12N63, BCA20N125, BCA40N125
• External Battery Quantity: 12V x 40pcs

Surge Protection & Filtering

• EMI/RFI Filtration: Yes

Management & Communications

• LCD Panel: Yes
• LCD Types: Color LCD, LCD Touch Panel
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language
• LED Indicators: Yes
• Serial Port: RS232 x 1 + RS485 x 1 + Dry Contact x 1
• Dry Contact (with Relay): Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Management Cable ( pcs ): Power Cord x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

Physical

• Compatible with Racks (3 Phase): Yes
• Enclosure Construction: Metal
• Color: Black
• Ingress Protection: IP20
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• High Density Design: Yes
• Dimensions (WxHxD) (mm.): 438 x 130 x 750
• Weight (kg.): 25
• Installed Rack Height ( U ): 3

Shipping Dimensions

• Dimensions (WxHxD) (mm.): 575 x 270 x 950
• Weight (kg.): 32.4

Environmental

• Operating Temperature (°C): 0 ~ 40
• Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
• Operating Elevation ( feet/meters ): ≤1000, Load Derated 1% per 100m from 1000m and 2000m
• Storage Temperature (°C): -40 ~ 70
• Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
• Audible Noise at 1.0M from Surface of Unit ( dBA ): 58

Certifications

• Certifications: CE, IEC62040-1, EN 62040-2, EN 61000-3-11, EN 61000-3-12
• RoHS: Yes

Special Features

• Phase Configuration (3 Phase): Yes

Warranty

• Product Warranty Period (Year): 2
• Battery Warranty Period (Year): 2
