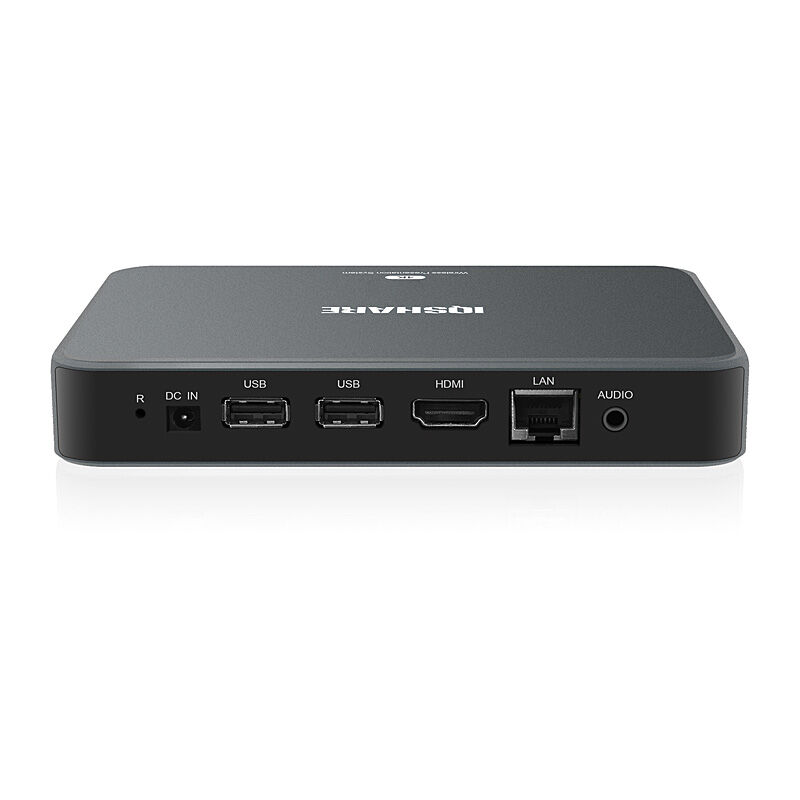

IQBOARD Wireless Sharing Box

Features

• Say Goodbye to UC Incompatibility
• Automatic Meeting Flow Boosts Productivity
• 4K UHD Screen Mirror
• Remote Collaboration Never Been Easier
• Wireless, Wide-range, Stable Transmission
• Two-way Screen Share & Control
• Give Everyone A World Showing The Ideas
• Reliable Encryption
• Maximum Visibility by Group Display
• IQShare Operating System
• Requiring No Network and Installation
• 3 Types of IQShare Buttons (Optional)

Specifications

• Model: WP40
• Video Outputs: HDMI 1.4, comply with HDCP
• Frame Rate: Up to 60 fps depending on environment (UHD)
• Output Resolution: Max 3840×2160P (4K)
• Input Resolution (wireless transmission): Max 3840×2160P (4K)
• Simultaneous Connections (Buttons): 8 pcs
• Max. Display Windows: 4 pcs
• Audio: Stereo, Radio quality 16bits 48KHz
• Wireless Transmission Band: 2.4 GHz & 5 GHz (dual band WIFI)
• Wireless Transmission Protocol: IEEE 802.11 a/b/g/n
• Data Rate (Wireless): Up to 800Mb
• Authentication Protocol: WPA2-PSK (Pre-Share Key)
• Security (encryption): AES
• Support OS: Windows7/8/10, Mac OS, Chrome OS, Android, Linux, IOS 8.0 and above
• Receiving Distance: Max. 35m between IQShare Box and IQShare Button
• Operating Temperature: -10°~65°

IQShare Box

• Model: WP40
• Interface: HDMI OUT 1.4×1, USB×2, RJ45×1, Earphone×1, DC Power Jack×1
• System: Android 9.0
• Main Frequency: 1.1GHz–1.5GHz
• Cores: 4*Cortex-A53
• RAM: 2G
• ROM: 8G
• Power Supply: DC5V, 2A
• Power Consumption: 24W
• Dimension (W×H×D): 145×104×23 mm
• Weight: 260g
