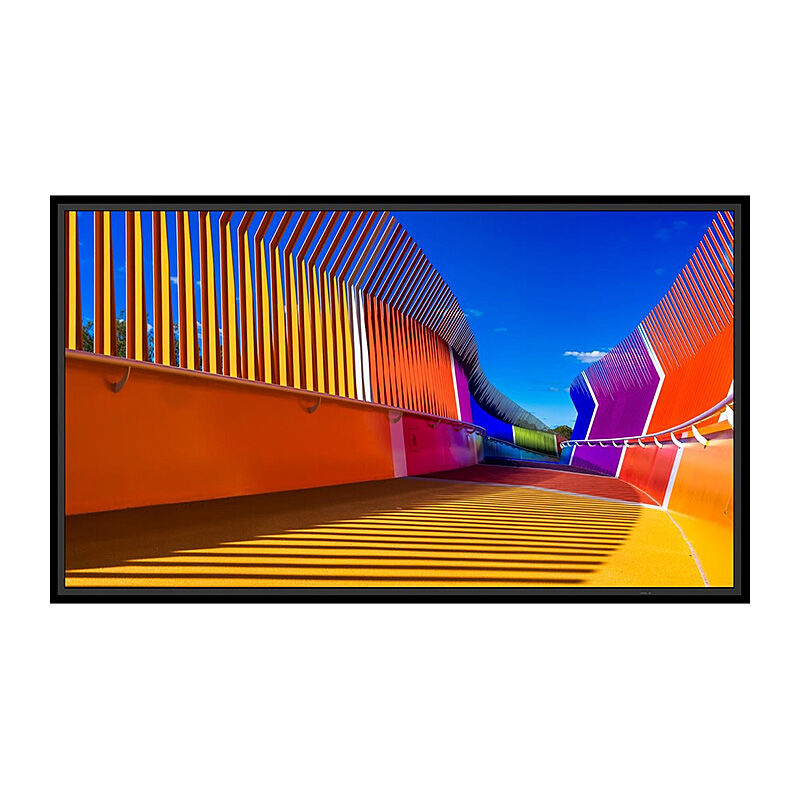

SHARP Essential 32'' Display

SHARP Commercial 32'' Display, FHD resolution, 350nits Brightness with High Haze. Recommended for up to 16hr/day use. Landscape and Portrait use with even bezel. USB-C & HDMI inputs. LAN control.

Features

• 4K UHD native resolution allows for high end visual acuity!
• Built-in, integrated 10W speakers enhance the experience with superior sound
• Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
• Tilt back and forth installation (-20°?20°) to install it at desired angle
• Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
• 24-Hour On/Off timer maintains power schedules
• Integrated Media Player allows for audio, video or image playback via USB
• USB Type-C port for audio/video input
• NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Specifications

• Panel Technology: ADS with Direct LED backlights
• Active Screen Area: 698.4 x 392.9 mm
• Screen Size: 32 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.364 mm
• Brightness: 350 cd/m2
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178° horizontal / 178° vertical (typ. at contrast ratio 10:1)
• Colour Depth: 1.073 bn (8-bit + FRC)
• Response Time: 8 ms
• Panel Refresh Rate: 60 Hz
• Haze Level: 25%
• Supported Orientation: Landscape, Portrait

Resolution

• Native Resolution: 1920 x 1080
• Supported Resolution: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1280 x 960; 1360 x 768; 1400 x 1050; 1440 x 900; 1680 x 1050; 1920 x 1080; 1920 x 1200; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480; 720 x 576

Synchronisation Rate

• Horizontal Frequency: 15 – 136 kHz
• Vertical Frequency: 24 – 75 Hz

Connectivity

• Input Video Digital: 1 x USB-C (with HDCP, 15 W); 2 x HDMI
• Input Audio Digital: 1 x USB-C; 2 x HDMI
• Input Control: 1 x LAN 100 Mbit; 1 x RS232
• Input Data: 1 x USB 2.0 (Media Player); 1 x USB-C (5V/3A, power for external devices)
• Output Audio Analogue: 1 x 3.5 mm jack
• Remote Control: IR Remote Control; RS‑232C (9‑pin D‑sub) input

Electrical

• Power Consumption: 43 W (shipping)
• Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
• Power Supply: 100–240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0 °C to 40 °C
• Operating Humidity: 20% to 80%
• Storage Temperature: −20 °C to 60 °C
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W x H x D): 724 x 418 x 59.0 mm
• Weight: 4.7 kg
• Bezel Width: 10.5 mm
• VESA Mounting: 200 x 200 mm (M6)
• Packaging Dimensions (W x H x D): 824 x 554 x 119 mm
• Packaging Weight: 7 kg

Media Player

• Supported Image Formats: JPG (baseline, progressive, RGB, CMYK); max resolution 15360 x 8640
• Supported File Storage / File System: FAT16 / FAT32 via USB 2.0
• Supported Video Formats: MPG (MPEG1/2/4, max 1080p @ 30 Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max 3840 x 2160 @ 60 Hz); TS (MPEG2, H.264, HEVC/H.265, max 3840 x 2160 @ 60 Hz); WMV (H.264, WMV9, max 1080p @ 30 Hz)
• Supported Audio Formats (Video): LPCM, MP3, AAC, WMA 9/10
• Supported Audio Format: MP3, max bit rate 320 kbps

Other Features

• Safety and Ergonomics: CE; Energy Star 8; FCC Class B; RCM; UKCA; UL/C‑UL or CSA; VCCI
• Ecological Standards: Energy Star 8.0
• Special Characteristics: CEC Support; HDMI ARC; NaViSet Administrator 2; Powered USB Port; Scheduler; USB Media Player
• Colour Versions: Black front bezel; black back cabinet
• Audio: Integrated speakers (10 W + 10 W)
• Shipping Content: 2 x AAA batteries; cable clamps; display; power cable; remote control; setup manual
• Operating Hours: 16/7
• Remote Management: NaViSet Administrator 2
