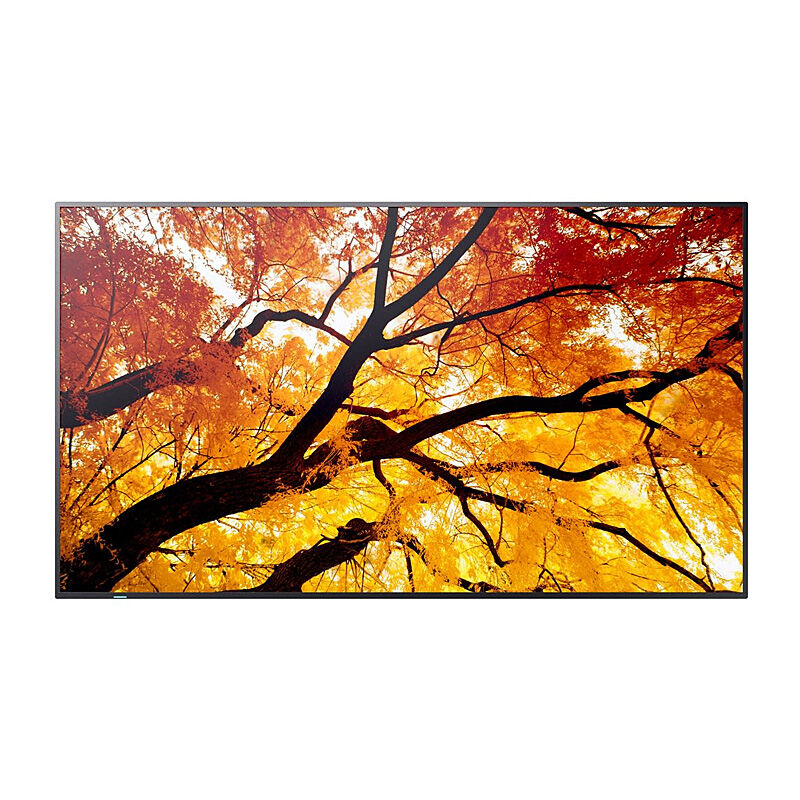

SHARP M-series 32'' Display

SHARP Recommended for 24/7 applications. 450nits brightness and High Haze Display. Landscape or Portrait use. Built-in Media Player. Full commercial feature set and controls.

Features

• Flexible installation – landscape and portrait orientation allows for flexibility of installation dependent on your needs.
• Advanced external control – bidirectional and full external control allows for easy integration into control systems via LAN or RS232C.
• High brightness and HDR – 450 cd/m² brightness and HDR compatibility capture the attention of audiences in almost any situation.
• Integrated Media Player – allows for audio, video or image playback directly via USB.
• Failover capabilities – full Input Detect functionality provides peace of mind by automatically switching to a secondary or tertiary source if the primary source fails.
• NaViSet Administrator 2 – free software solution that greatly eases administration and management of larger display device installations.

Specifications

General Information

• Panel Technology: VA with Direct LED backlights
• Active Screen Area: 698.4 x 392.9 mm
• Screen Size: 32 inch
• Aspect Ratio: 16:9
• Pixel Pitch: 0.364 mm
• Brightness: 450 cd/m2
• Contrast Ratio: 4000:1
• Viewing Angle (H/V): 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Colour Depth [bn]: More than 16.7 million
• Colour Gamut: 72% of NTSC
• Response Time: 8ms
• Panel Refresh Rate (Hz): 60Hz
• Haze Level (%): 25
• Supported Orientation: Landscape, Portrait

Resolution

• Native Resolution: 1920 x 1080
• Supported Resolution: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480

Synchronisation Rate

• Horizontal Frequency [kHz]: 15 - 135
• Vertical Frequency [Hz]: 23 - 76

Connectivity

• HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
• HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
• DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
• USB-A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
• Audio Output (3.5 mm): Audio Output; Line Out
• LAN 1: 100 MBit/s
• RS-232C: 9600 bps

Sensors

• Ambient Light Sensor: Integrated, triggered actions programmable
• Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
• Human Sensor: Optional via Eco Sensor (PNKTES1)

Electrical

• Power Consumption: 40W shipping
• Power Savings Mode: < 0.5; < 2 (Networked Standby)
• Power Supply: 100-240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: 0ºC to 40ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -20ºC to 60ºC
• Storage Humidity: 10% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: 726.5 x 425.4 x 66.5
• Weight [kg]: 6.3
• VESA Mounting [mm]: 100 x 100 mm, 200 x 200 mm (off-center)
• Bezel Width [mm]: 11.9 (left and right); 11.8 (top); 17.2 (bottom)
• Packaging Dimensions (W x H x D) [mm]: 870 x 527 x 160
• Packaging Weight [kg]: 9.8
• Material: Metal

Available Options

• Accessories: Eco Sensor (PNKTES1); Soundbar (PN-ZCMS1)

Other Features

• Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
• Additional Features: AMX Support; Automated Email Alert Function; CEC Support through HDMI; Crestron Roomview Support; Display Browser Control; Display Wall Calibrator Compatible; HDR Compatible (PQ, HLG, HDR10); Key Guide; NaViSet Administrator 2 Compatible; OSD Rotation for Portrait Orientation; PJ Link Support; Power USB Port (5V/2A); Removable Logo Ornament; Real Time Clock; TileMatrix; SNMP; Consumer Electronics Control (CEC); Integrated USB Media Player; Integrated Temperature Sensor; Full Input Detect Functionality; Programmable Gamma; Scheduler Function; Off Timer; Vacation Switch; Variable or Fixed Audio Out; Key and Button Lock Settings; USB Copy
• Colour Versions: Black Front Bezel, Black Back Cabinet
• Audio (Speakers): Integrated Speakers (5W + 5W)
• Shipping Content (Accessories): AC Power Cord; 2.0m HDMI Cable; IR Remote Control; AAA batteries
• Operating Hours: 24/7
• Remote Management: NaViSet Administrator 2
